用 Netem 和 TCP 缓冲区观察下载速度

tcp 阅读时长: 5 分钟

tcp实验

1 实验准备

1.1 虚拟机

使用 VMware 创建两台本地隔离虚拟机，系统为 Ubuntu 20.04 LTS。以下私有地址只作为本地实验示例，与图中的地址一致：

  • tcp-server: 192.168.77.131
  • tcp-client: 192.168.77.132

1.1.1 虚拟机相关信息

系统相关信息

  1. 内核版本
  2. tc qdesc信息
  3. 系统内核相关参数
代码
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

root@tcp-server:~# uname -a
Linux tcp-server 5.4.0-149-generic #166-Ubuntu SMP Tue Apr 18 16:51:45 UTC 2023 x86_64 x86_64 x86_64 GNU/Linux
root@tcp-server:~# tc qdisc show dev ens33
qdisc fq_codel 0: root refcnt 2 limit 10240p flows 1024 quantum 1514 target 5.0ms interval 100.0ms memory_limit 32Mb ecn
root@tcp-server:~# sudo sysctl -a | egrep "rmem|wmem|tcp_mem|adv_win|moderate"
net.core.rmem_default = 212992
net.core.rmem_max = 212992
net.core.wmem_default = 212992
net.core.wmem_max = 212992
net.ipv4.tcp_adv_win_scale = 1
net.ipv4.tcp_mem = 44544        59392   89088
net.ipv4.tcp_moderate_rcvbuf = 1
net.ipv4.tcp_rmem = 4096        131072  6291456
net.ipv4.tcp_wmem = 4096        16384   4194304
net.ipv4.udp_rmem_min = 4096
net.ipv4.udp_wmem_min = 4096
vm.lowmem_reserve_ratio = 256   256     32      0       0

Tips: 可以给虚拟机挂载本地文件目录，可以免去拷贝tcpdump file到本地，直接使用

1.2 大文件

1.2.1 dd生成大文件

代码
1

dd if=/dev/zero of=large_file bs=1G count=2

1.3 服务器

1.3.1 ubuntu安装nginx

最早使用 Python HTTP 服务器，多次实验结果不够稳定。为减少应用服务器差异，本组实验改用 Nginx。

代码
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

root@tcp-server:~# apt install -y nginx
Reading package lists... Done
Building dependency tree
Reading state information... Done
nginx is already the newest version (1.18.0-0ubuntu1.4).
0 upgraded, 0 newly installed, 0 to remove and 19 not upgraded.
root@tcp-server:~# systemctl start nginx
root@tcp-server:~# systemctl status nginx
● nginx.service - A high performance web server and a reverse proxy server
     Loaded: loaded (/lib/systemd/system/nginx.service; enabled; vendor preset: enabled)
     Active: active (running) since Mon 2023-05-29 15:09:35 UTC; 23h ago
       Docs: man:nginx(8)
   Main PID: 2154 (nginx)
      Tasks: 3 (limit: 4573)
     Memory: 515.4M
     CGroup: /system.slice/nginx.service
             ├─2154 nginx: master process /usr/sbin/nginx -g daemon on; master_process on;
             ├─2155 nginx: worker process
             └─2156 nginx: worker process

May 29 15:09:35 tcp-server systemd[1]: Starting A high performance web server and a reverse proxy server...
May 29 15:09:35 tcp-server systemd[1]: Started A high performance web server and a reverse proxy server.

1.3.2 配置nginx

修改nginx配置文件，能通过http://ip/path访问到文件。具体操作如下。

nginx默认配置文件启动了80端口，配置文件为/etc/nginx/sites-enabled/default，查看配置文件发现默认nginx的html路径为/var/www/html。 将刚刚生成的大文件large_file移动到/var/www/html。

1.3.3 测试nginx服务器配置

在tcp-client机器上访问文件

代码
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

root@tcp-client:~# curl -O http://192.168.77.131/large_file
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 2048M  100 2048M    0     0  32.4M      0  0:01:03  0:01:03 --:--:-- 30.9M
root@tcp-client:~# ping 192.168.77.131
PING 192.168.77.131 (192.168.77.131) 56(84) bytes of data.
64 bytes from 192.168.77.131: icmp_seq=1 ttl=64 time=0.480 ms
64 bytes from 192.168.77.131: icmp_seq=2 ttl=64 time=0.716 ms
64 bytes from 192.168.77.131: icmp_seq=3 ttl=64 time=0.671 ms
64 bytes from 192.168.77.131: icmp_seq=4 ttl=64 time=0.602 ms
^C
--- 192.168.77.131 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3064ms
rtt min/avg/max/mdev = 0.480/0.617/0.716/0.089 ms

不调整网络测试下载速度/时间，看看抓包分析rtt，tcptrace图

  • 客户端机器上抓包
代码
1
2
3
4
5

root@tcp-client:~# tcpdump -i ens33 "host 192.168.77.131" -w tcpdump-clinet-none.cap
tcpdump: listening on ens33, link-type EN10MB (Ethernet), capture size 262144 bytes
^C155254 packets captured
155254 packets received by filter
0 packets dropped by kernel
  • 服务端上抓包
代码
1
2
3
4
5

root@tcp-server:~# tcpdump -i ens33 -s 120 "host 192.168.77.132" -w tcpdump-server-none.cap
tcpdump: listening on ens33, link-type EN10MB (Ethernet), capture size 120 bytes
^C133195 packets captured
133195 packets received by filter
0 packets dropped by kernel

抓包命令解释:

  • 可以不指定 -s，抓全量，这样可以看出更多信息，但也会导致文件下载很大。
  • 分析tcp图表，rtt(Round Trip Time)一个tcp包往返的时间，一般使用ping命令也能发现，但不能完全代替，因为会有内核数据处理损耗等导致误差。
  • 分析sequence(tcptrace)图标，详细到50ms内，看网络延迟，ack响应时间。

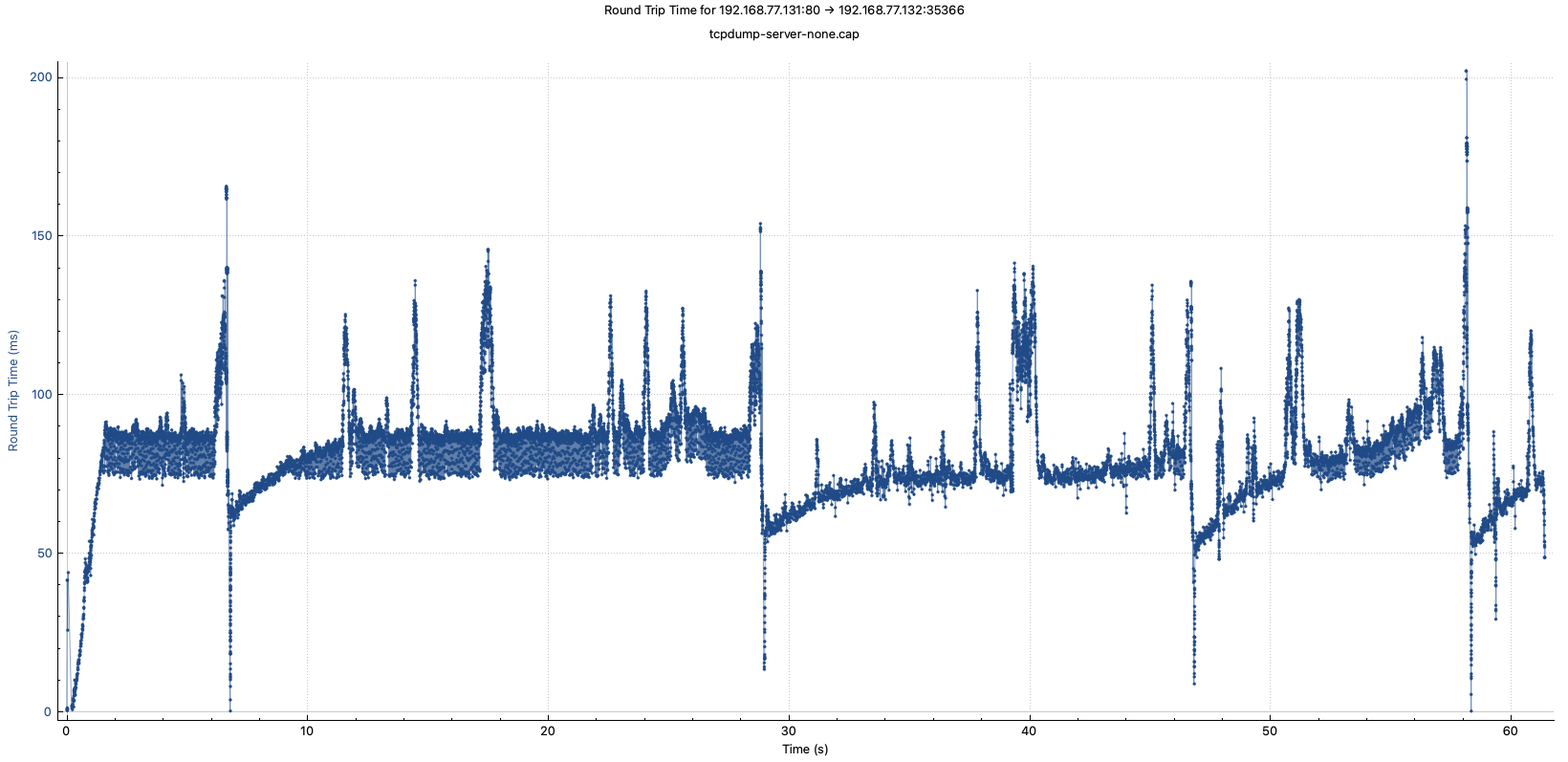

服务端抓包rtt图，rtt变化比较大

tcpdump-server-none-rtt

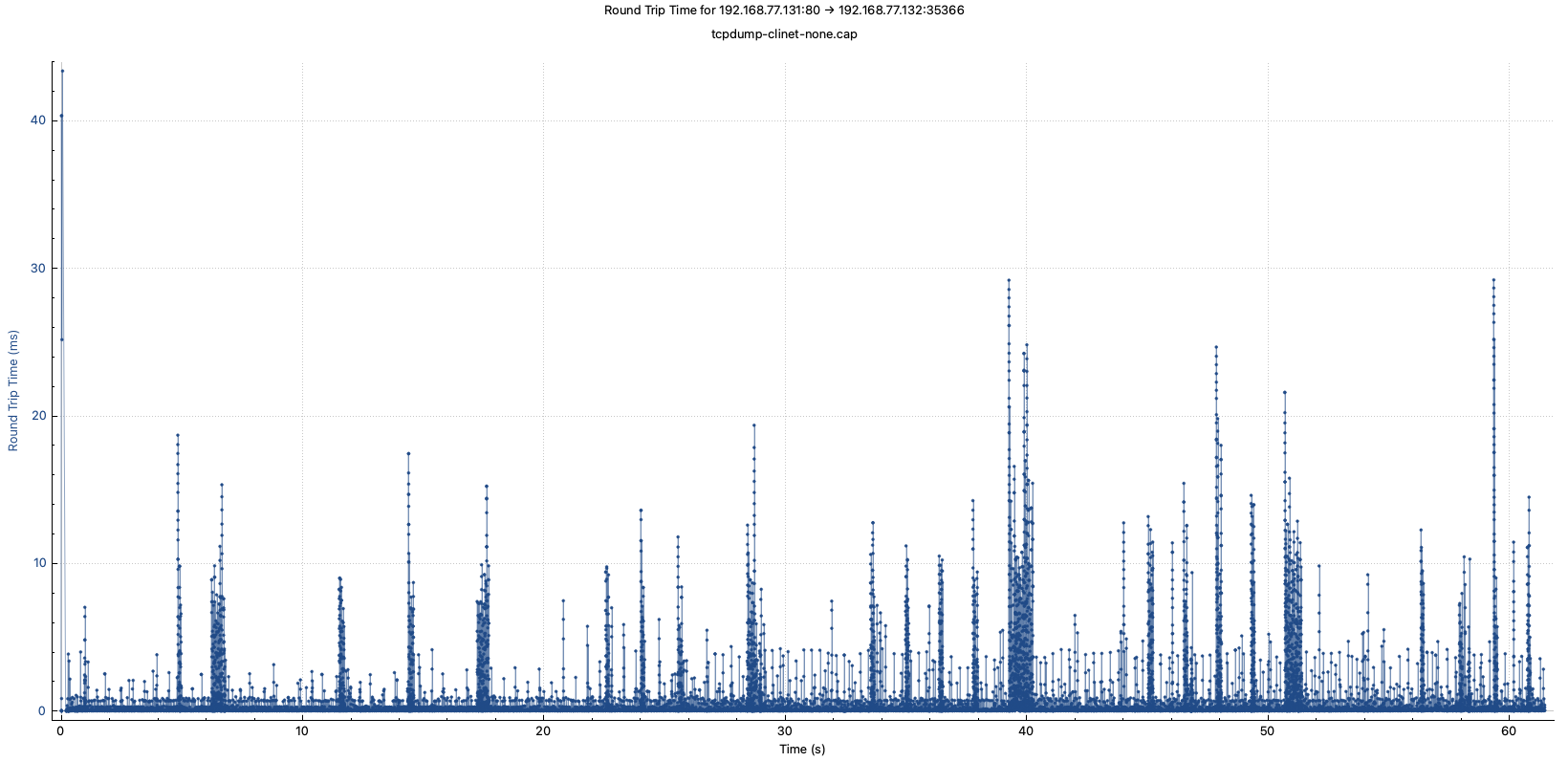

客户端端抓包rtt图，rtt时间大概在10以内

tcpdump–none-rtt

2 实验1:增加rt，验证 tc 延迟

clinet使用tc模拟延迟

root netem 作用于所配置网卡的出站流量。本实验在 client 端配置，因此其发往 server 的请求和 ACK 会受到延迟影响；若在 server 端配置，则延迟作用于 server 发出的数据。

代码
1
2
3
4
5
6
7

root@tcp-client:~# tc qdisc add dev ens33 root netem delay 100ms
root@tcp-client:~# tc qdisc show dev ens33
qdisc netem 8002: root refcnt 2 limit 1000 delay 100.0ms
root@tcp-client:~# curl -O http://192.168.77.131/large_file
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 2048M  100 2048M    0     0  13.9M      0  0:02:27  0:02:27 --:--:-- 23.8M

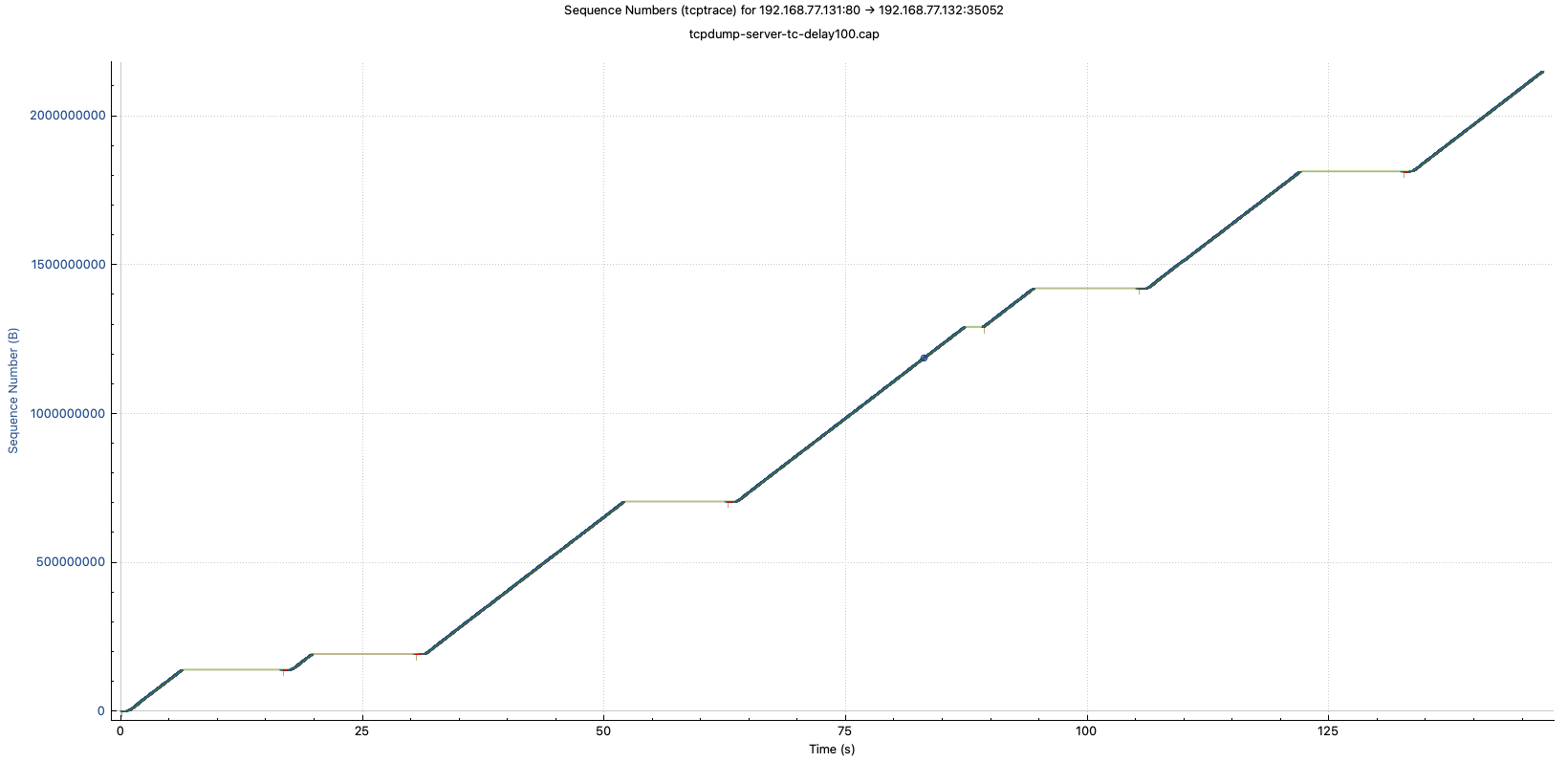

服务端抓包，有几段很明显的ack响应延迟，平均下载速度也小了，13.9M

tcpdump-server-tc-delay100-tcptrace

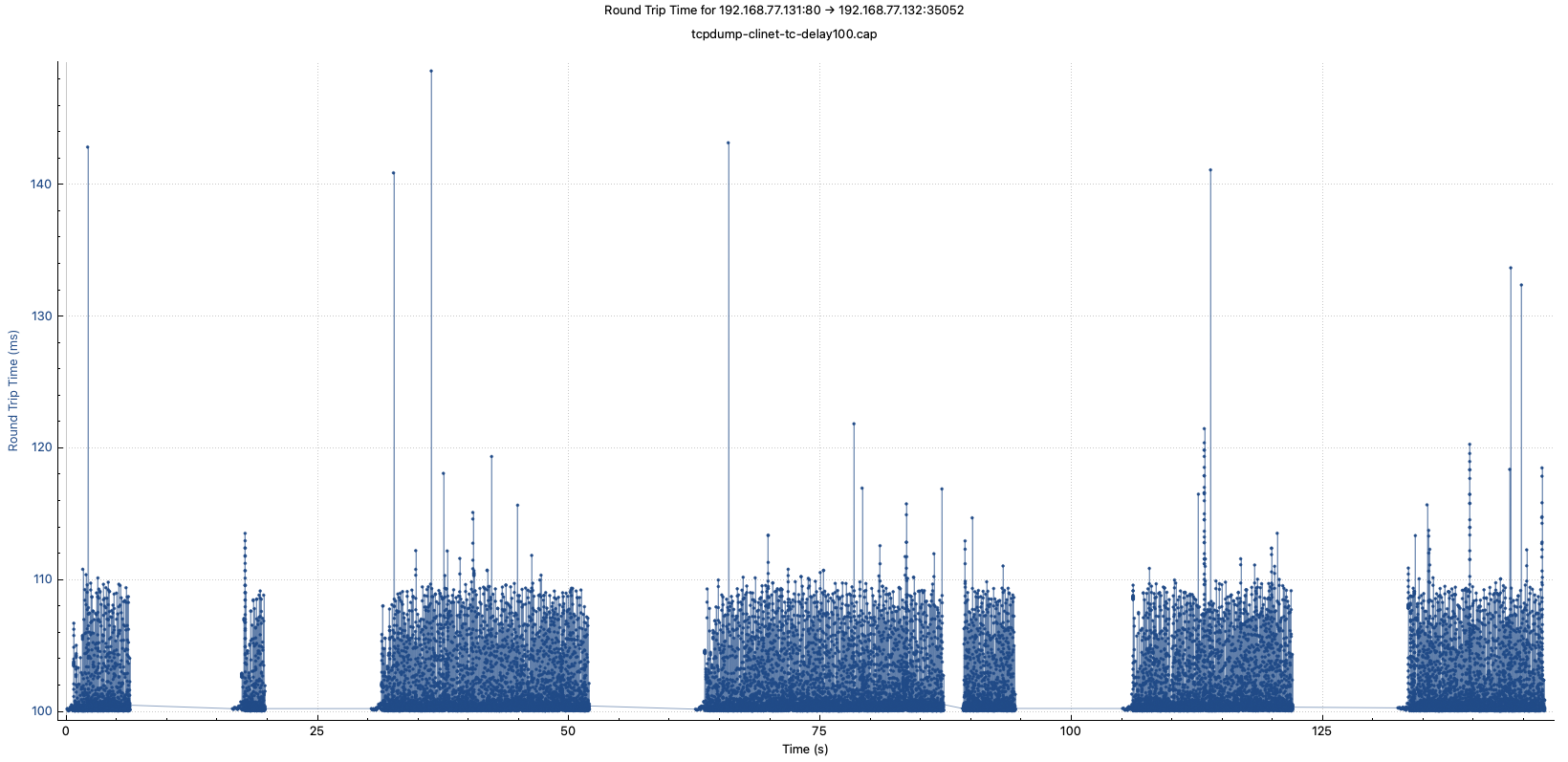

客户端抓包，rtt图延迟直接在100以上，与预期一致；对比没有延迟的rtt图，几乎是所有数据点上浮100ms

tcpdump-client-tc-delay100-rtt

3 实验2:写死 server wmem

删除之前增加的延迟配置

代码
1
2
3
4

root@tcp-client:~# tc qdisc del dev ens33 root
root@tcp-client:~# tc qdisc show dev ens33
qdisc fq_codel 0: root refcnt 2 limit 10240p flows 1024 quantum 1514 target 5.0ms interval 100.0ms memory_limit 32Mb ecn
root@tcp-client:~#

调整内核参数

内核参数说明

Bash
1
2
3
4

sudo sysctl -a | egrep "rmem|wmem|tcp_mem|adv_win|moderate"

net.ipv4.tcp_rmem = 4096 131072 6291456 // 最小值、默认值、最大值
net.ipv4.tcp_wmem = 4096 16384 4194304 // 最小值、默认值、最大值

sysctl：可以查看和修改内核参数 rmem：套接字接收缓冲区大小 wmem：套接字发送缓冲区大小

下面的实现会调整 rmem 和 wmem 的大小做相关的实验。

修改前参数

代码
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

root@tcp-client:~# sysctl -a | egrep "rmem|wmem|tcp_mem|adv_win|moderate"
net.core.rmem_default = 212992
net.core.rmem_max = 212992
net.core.wmem_default = 212992
net.core.wmem_max = 212992
net.ipv4.tcp_adv_win_scale = 1
net.ipv4.tcp_mem = 44544        59392   89088
net.ipv4.tcp_moderate_rcvbuf = 1
net.ipv4.tcp_rmem = 4096        131072  6291456
net.ipv4.tcp_wmem = 4096        16384   4194304
net.ipv4.udp_rmem_min = 4096
net.ipv4.udp_wmem_min = 4096
vm.lowmem_reserve_ratio = 256   256     32      0       0

3.1 不调整 RT，仅调整server的wmem参数

修改，限死 wmem

代码
1
2

root@tcp-server:~# sysctl -w net.ipv4.tcp_wmem="4096 4096 4096"
net.ipv4.tcp_wmem = 4096 4096 4096

查看curl命令使用时间结果，下载速度很快，平均速度甚至大约不限制的情况

代码
1
2
3
4

root@tcp-client:~# curl -O http://192.168.77.131/large_file
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 2048M  100 2048M    0     0  48.4M      0  0:00:42  0:00:42 --:--:-- 43.5M

平均下载速度Average Dload: 48.4M

server抓包

代码
1
2
3
4
5

root@tcp-server:~# tcpdump -i ens33 -s 120 "host 192.168.77.132" -w tcpdump-server-wmem4096.cap
tcpdump: listening on ens33, link-type EN10MB (Ethernet), capture size 120 bytes
^C55406 packets captured
55406 packets received by filter
0 packets dropped by kernel

client抓包

代码
1
2
3
4
5

root@tcp-client:~# tcpdump -i ens33 "host 192.168.77.131" -w tcpdump-clinet-wmem4096.cap
tcpdump: listening on ens33, link-type EN10MB (Ethernet), capture size 262144 bytes
^C72485 packets captured
72485 packets received by filter
0 packets dropped by kernel

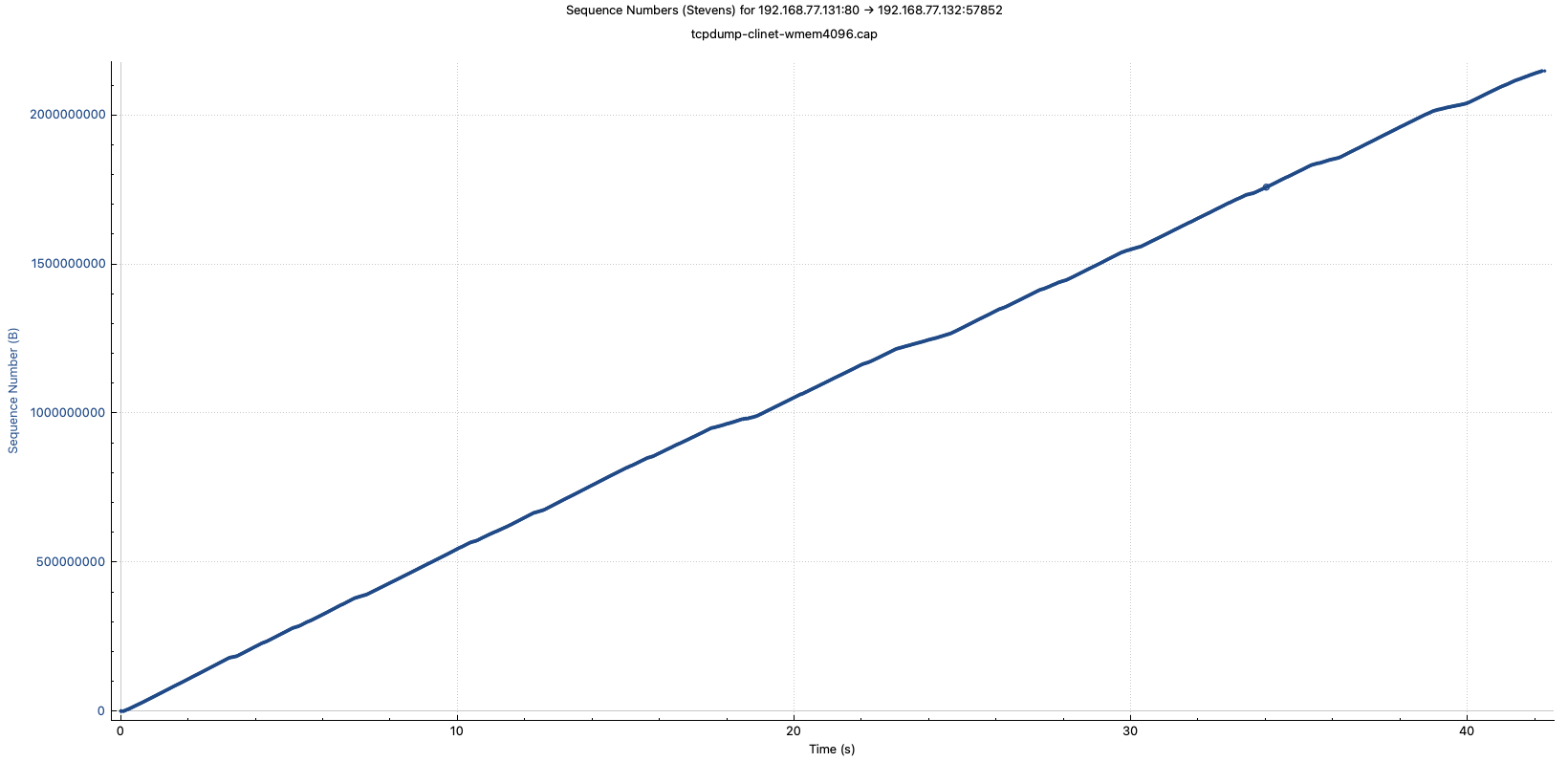

看stevens概览图，很平滑 tcpdump-client-wmem4096-stevens-overview

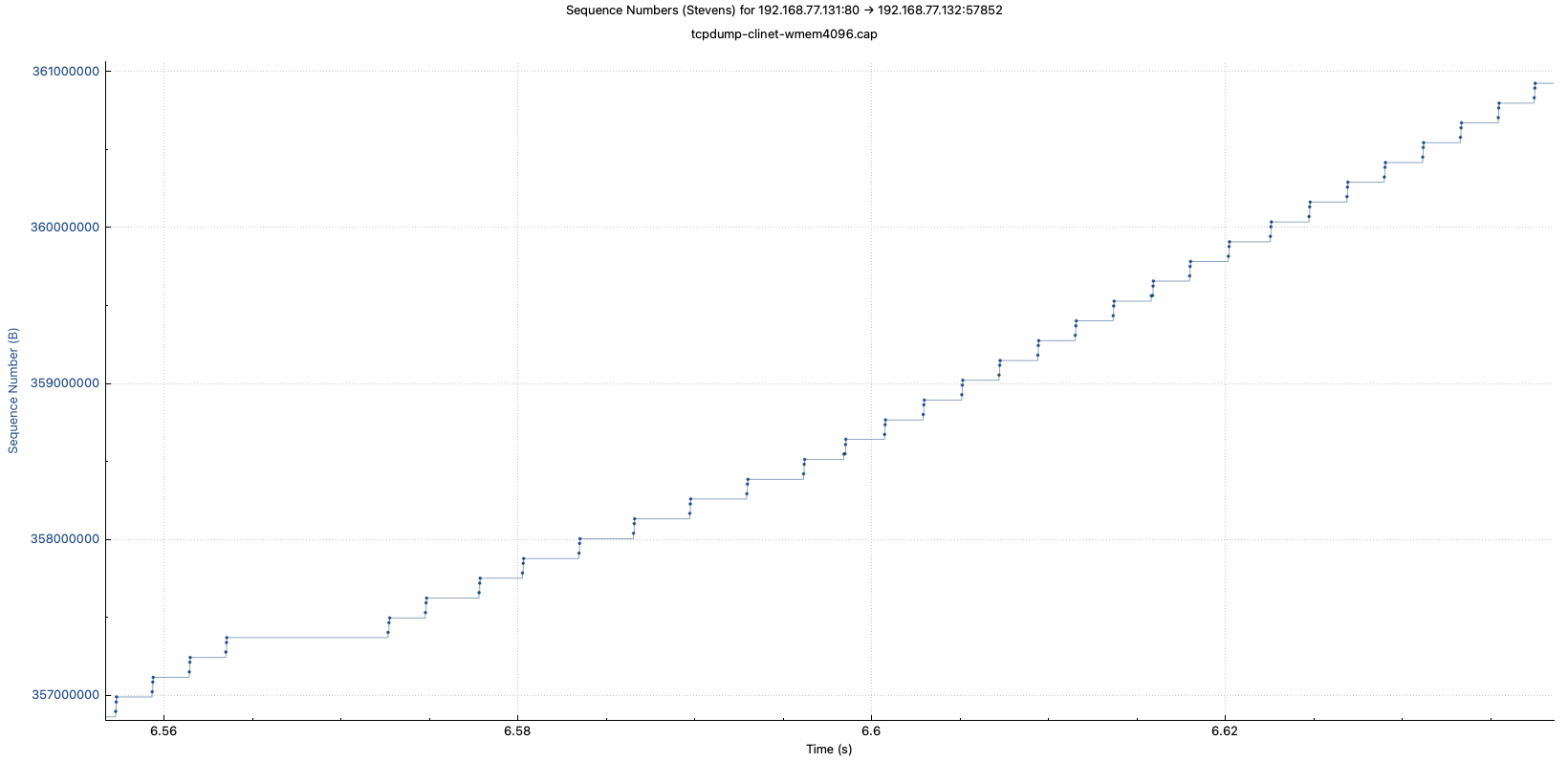

放大看stevens图，也没有很明显的延迟，两个包之间的ack时间也很短 tcpdump-client-wmem4096-stevens-detail

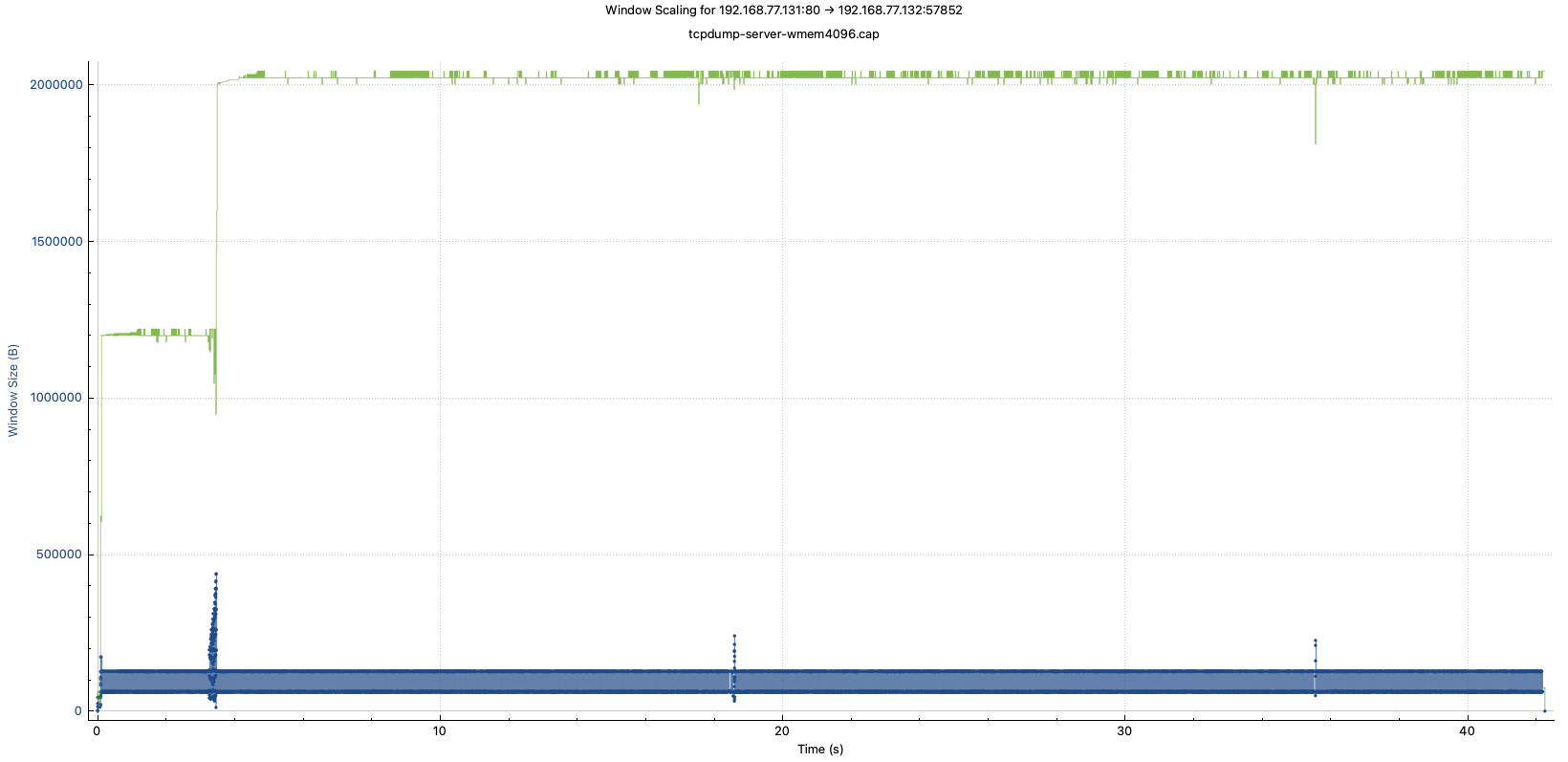

看看server的window窗口图，暂时也没看出啥特别的 tcpdump-server-wmem4096-window-scaling

3.2 接下来对 client 端调整 rt 为 100ms，看下整个下载情况。

代码
1
2
3
4
5
6

root@tcp-client:~# tc qdisc add dev ens33 root netem delay 100ms
root@tcp-client:~#
root@tcp-client:~# curl -O http://192.168.77.131/large_file
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 2048M  100 2048M    0     0  2497k      0  0:13:59  0:13:59 --:--:-- 11.4M

平均下载速度Average Dload: 2497k

很明显速度下降很多，最后的下载速度只有11.4M

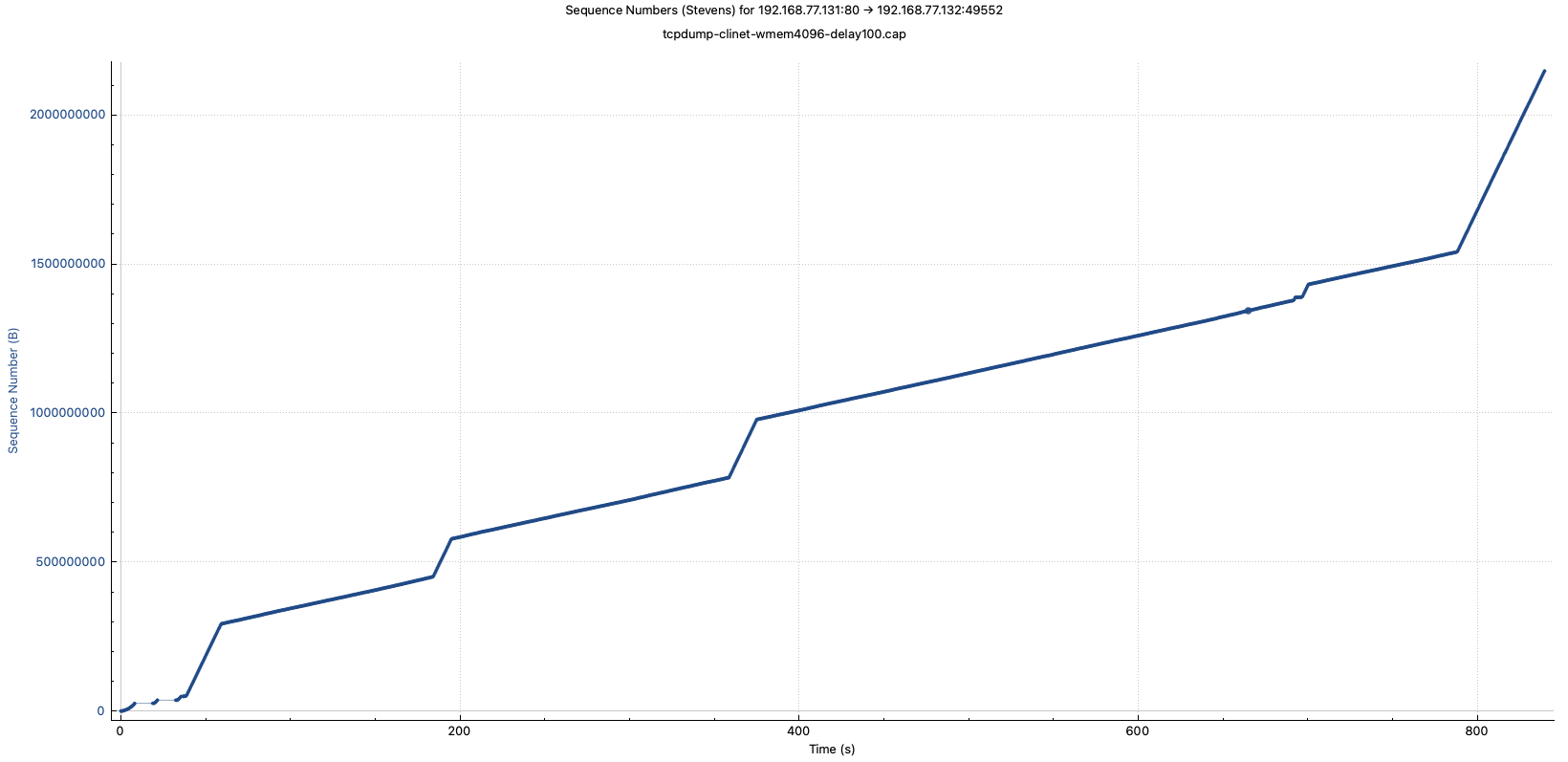

从stevens图里看结果，斜度比较平，中途还有很大的曲折

tcpdump-clinet-wmem4096-delay100-stevens-overview

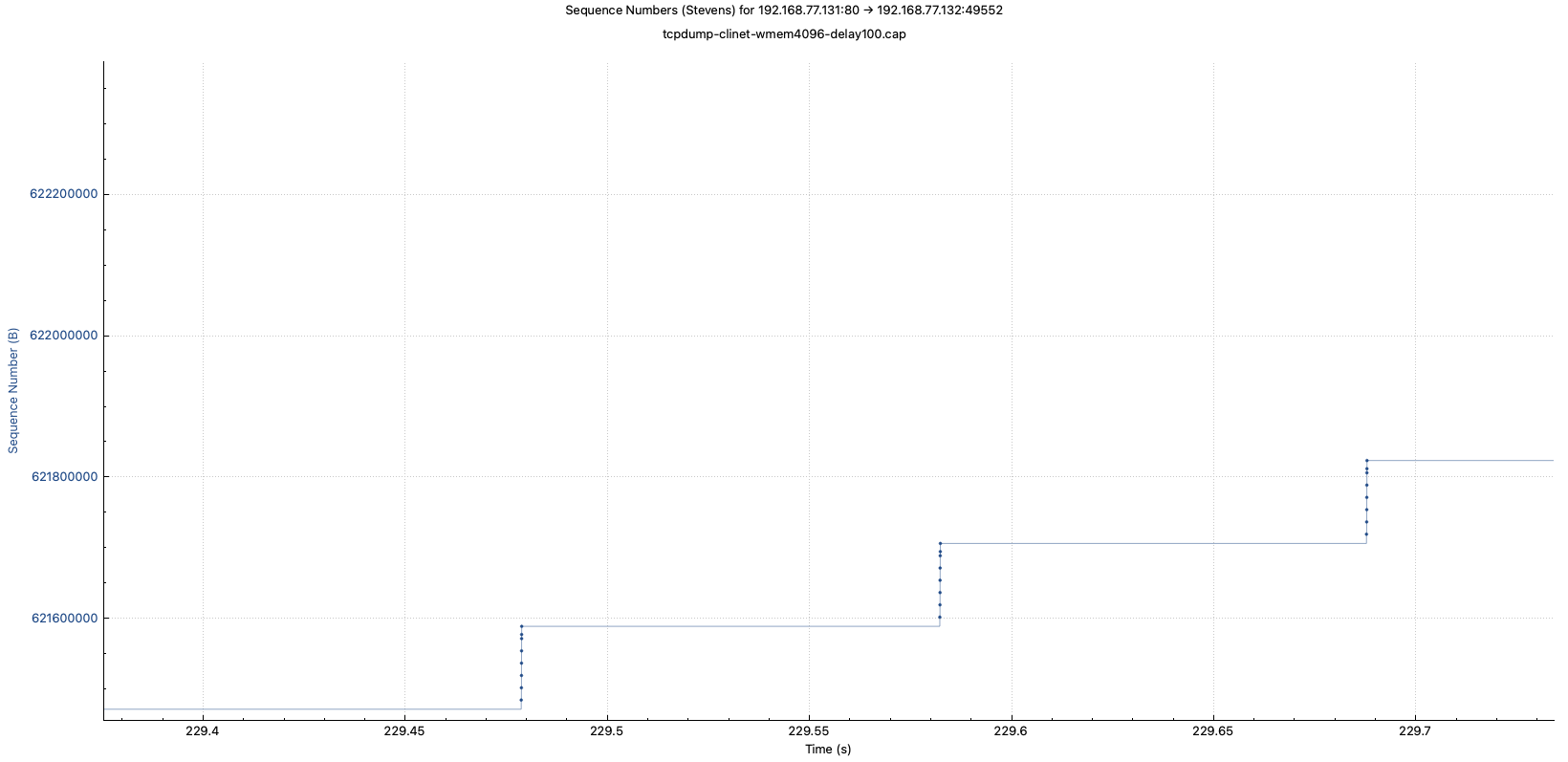

另一个角度看ack响应时间 tcpdump-clinet-wmem4096-delay100-stevens

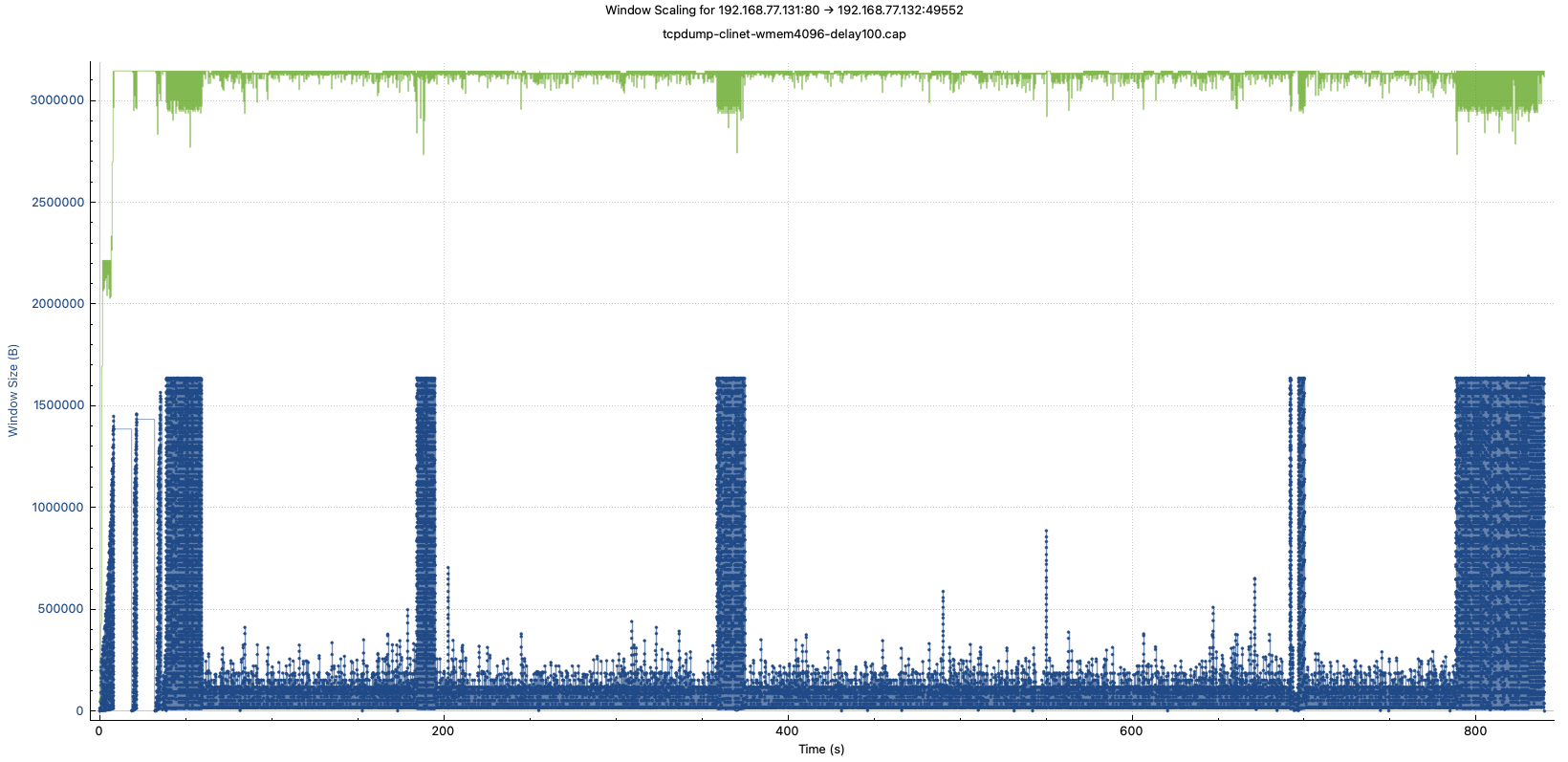

窗口明显上不去 tcpdump-clinet-wmem4096-delay100-window-scaling

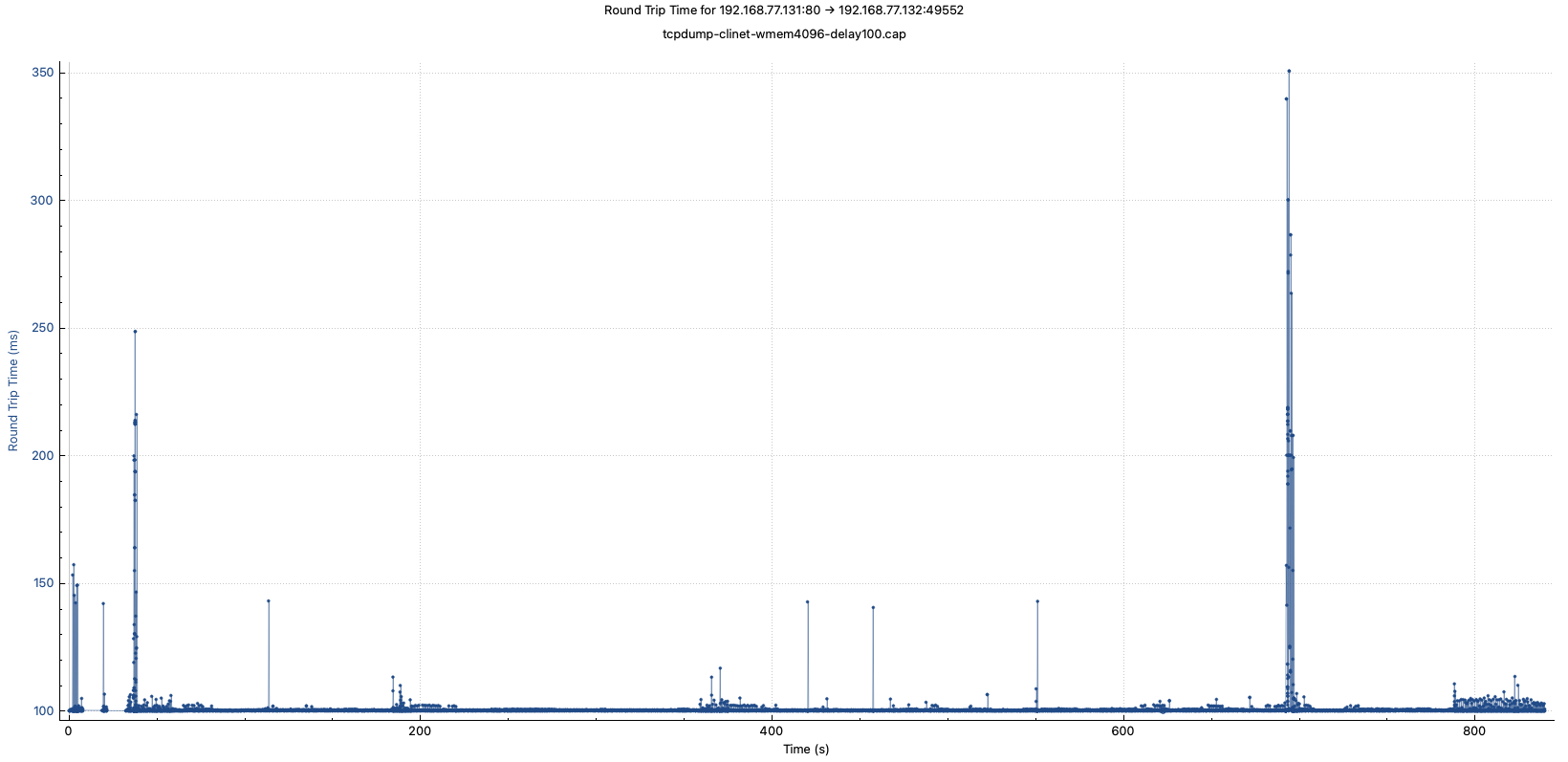

rtt时间也是很明显100以上 tcpdump-clinet-wmem4096-delay100-rtt

3.3 调整 client 端调整 rt 为 10ms，看下整个下载情况。

代码
1
2
3
4
5
6

root@tcp-client:~# tc qdisc del dev ens33 root
root@tcp-client:~# tc qdisc add dev ens33 root netem delay 10ms
root@tcp-client:~# curl -O http://192.168.77.131/large_file
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 2048M  100 2048M    0     0   9.9M      0  0:03:25  0:03:25 --:--:-- 8479k

平均下载速度Average Dload: 9.9M

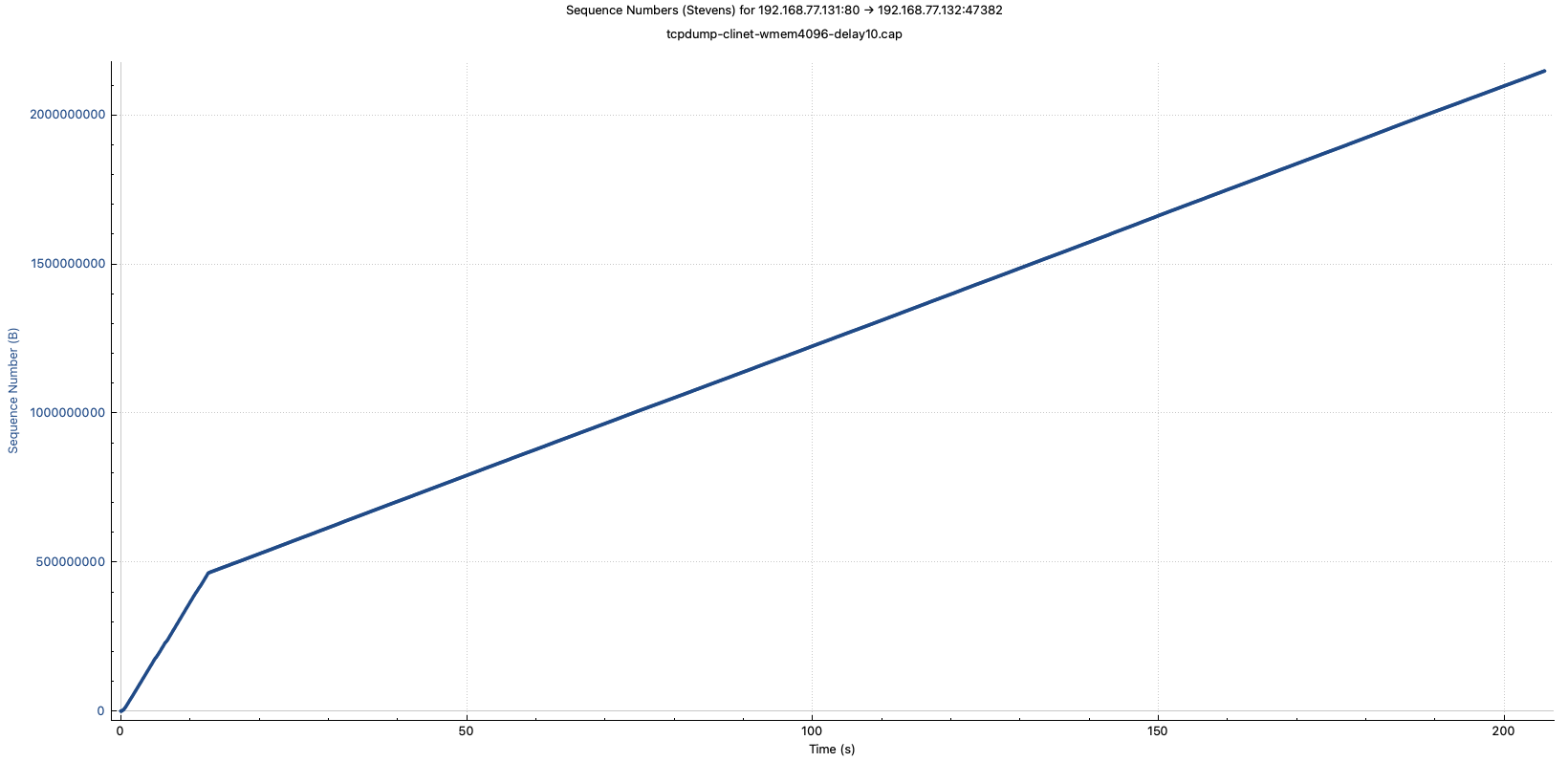

tcpdump-clinet-wmem4096-delay10-stevens-overview

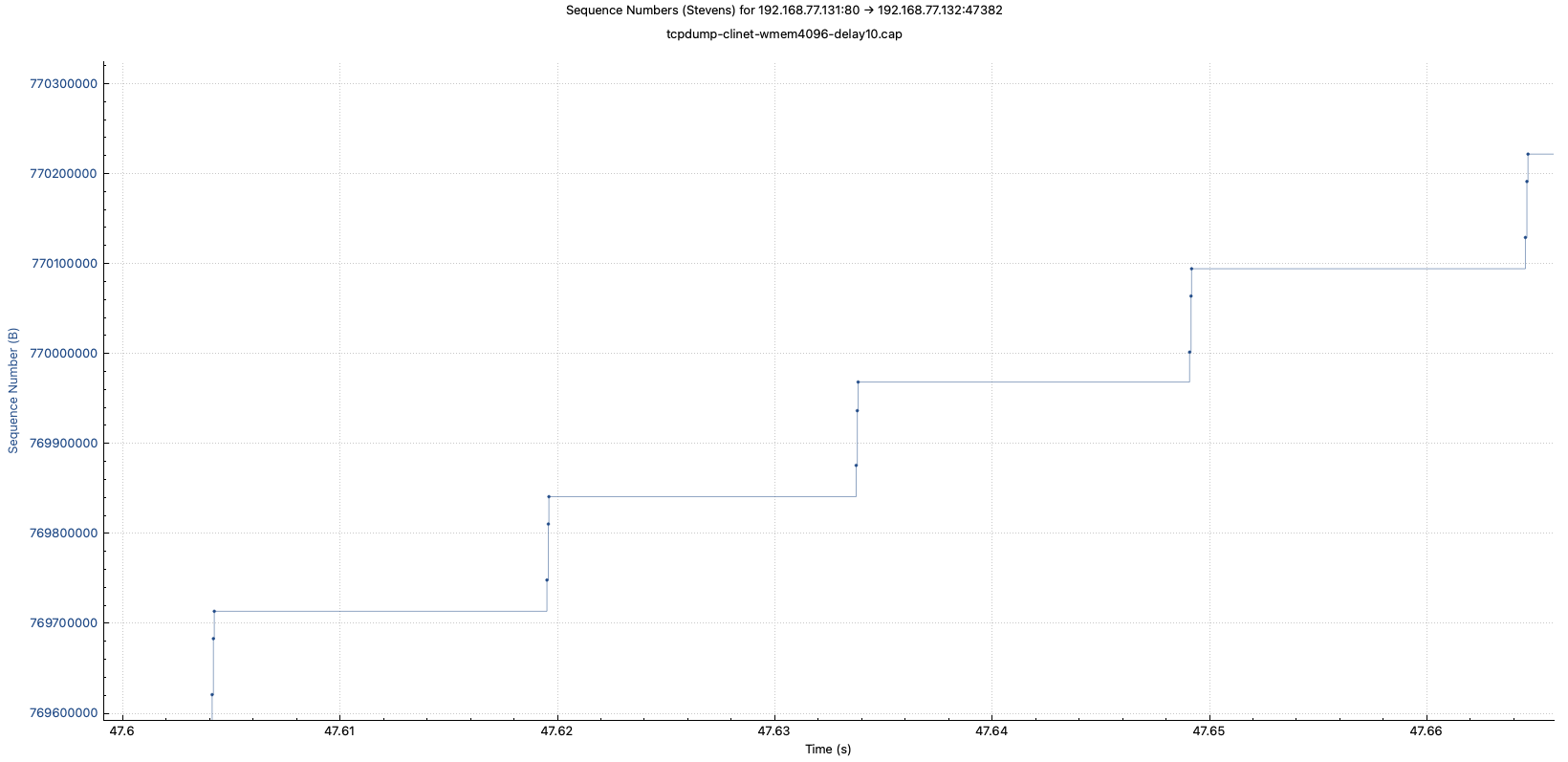

tcpdump-clinet-wmem4096-delay10-stevens

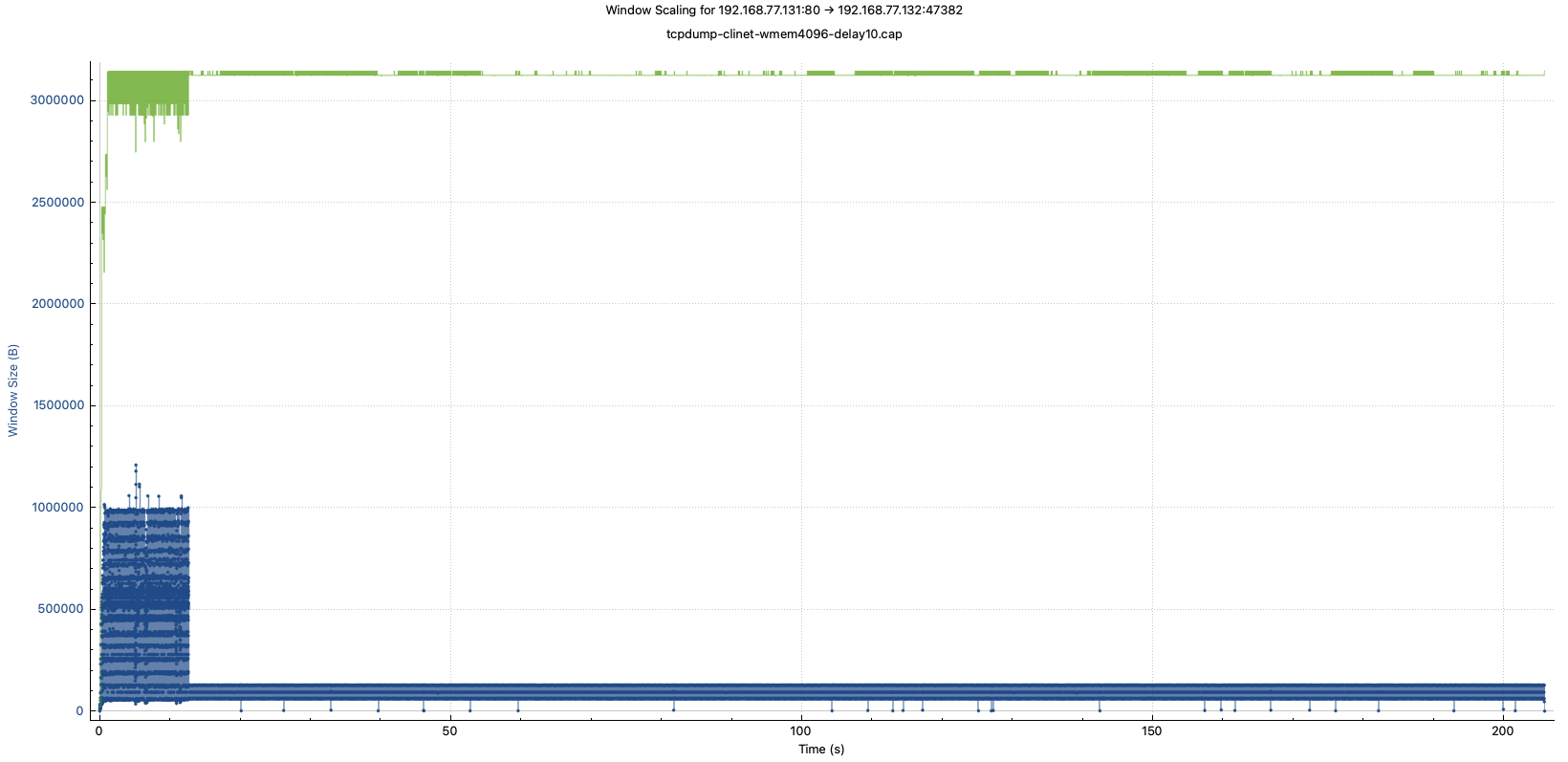

窗口明显上不去 tcpdump-clinet-wmem4096-delay10-window-scaling

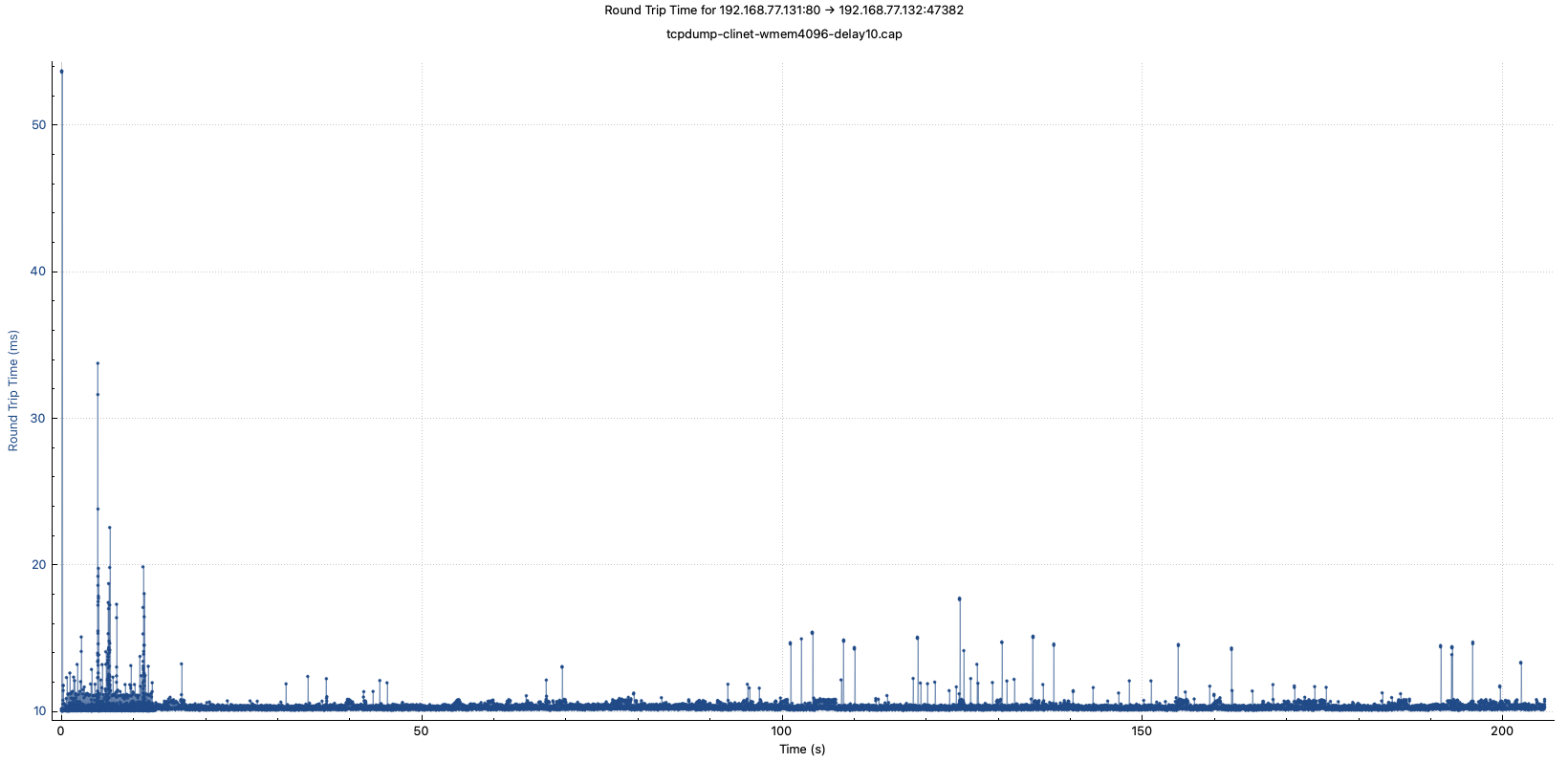

rtt时间也是很明显10以上 tcpdump-clinet-wmem4096-delay10-rtt

与上述100ms对比，发现同样的wmem 4096参数下, rt越大，速度越慢

3.4 调整 client 端调整 rt 为 200ms，看下整个下载情况。

代码
1
2
3
4
5
6
7
8

root@tcp-client:~# tc qdisc del dev ens33 root
root@tcp-client:~# tc qdisc add dev ens33 root netem delay 200ms
root@tcp-client:~# tc qdisc show dev ens33
qdisc netem 8005: root refcnt 2 limit 1000 delay 200.0ms
root@tcp-client:~# curl -O http://192.168.77.131/large_file
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 2048M  100 2048M    0     0  2069k      0  0:16:53  0:16:53 --:--:-- 6733k

rt延迟时间200ms，平均下载速度Average Dload: 2069k
